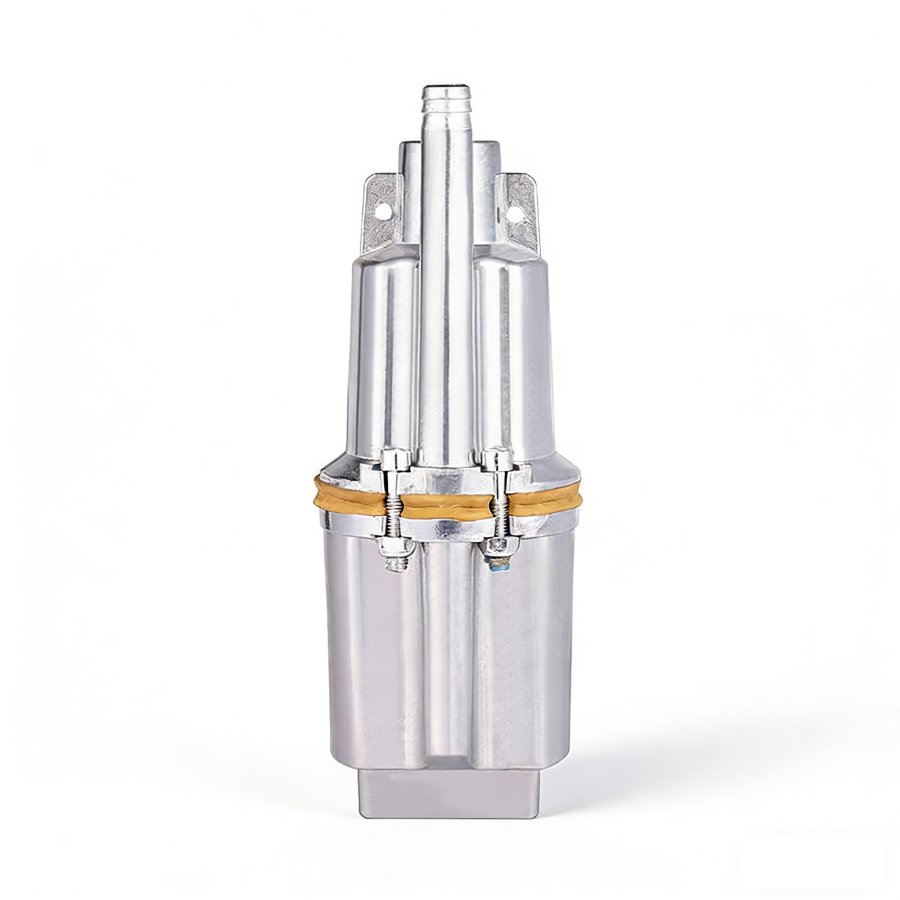

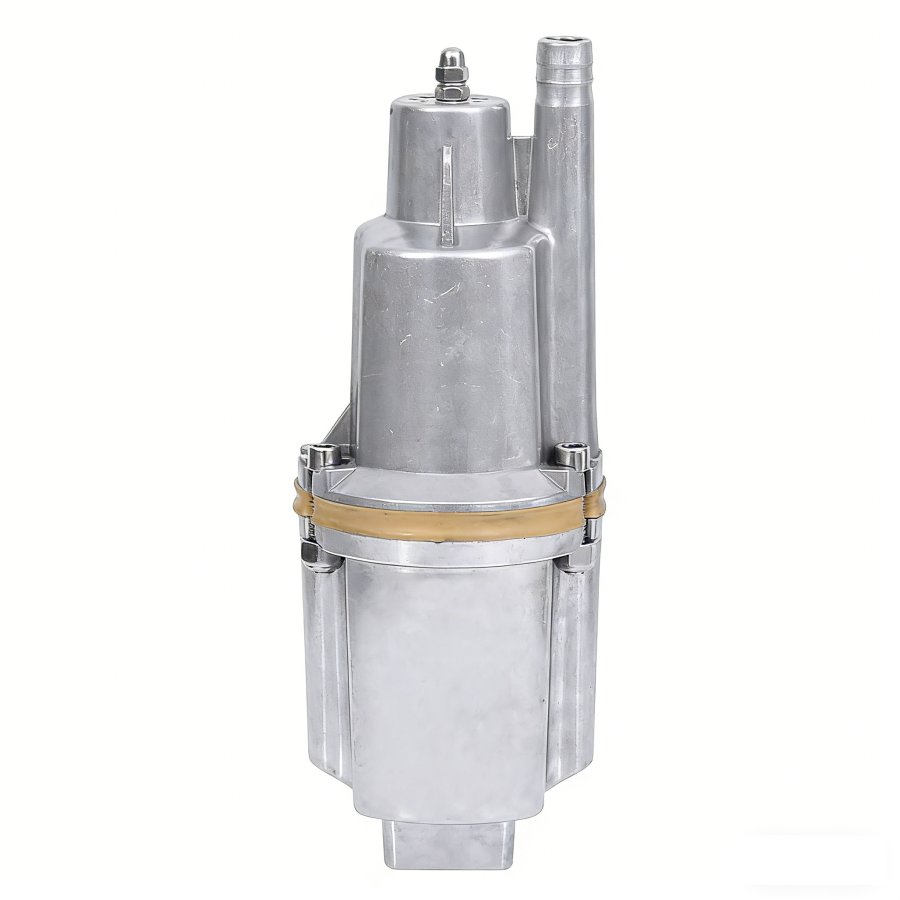

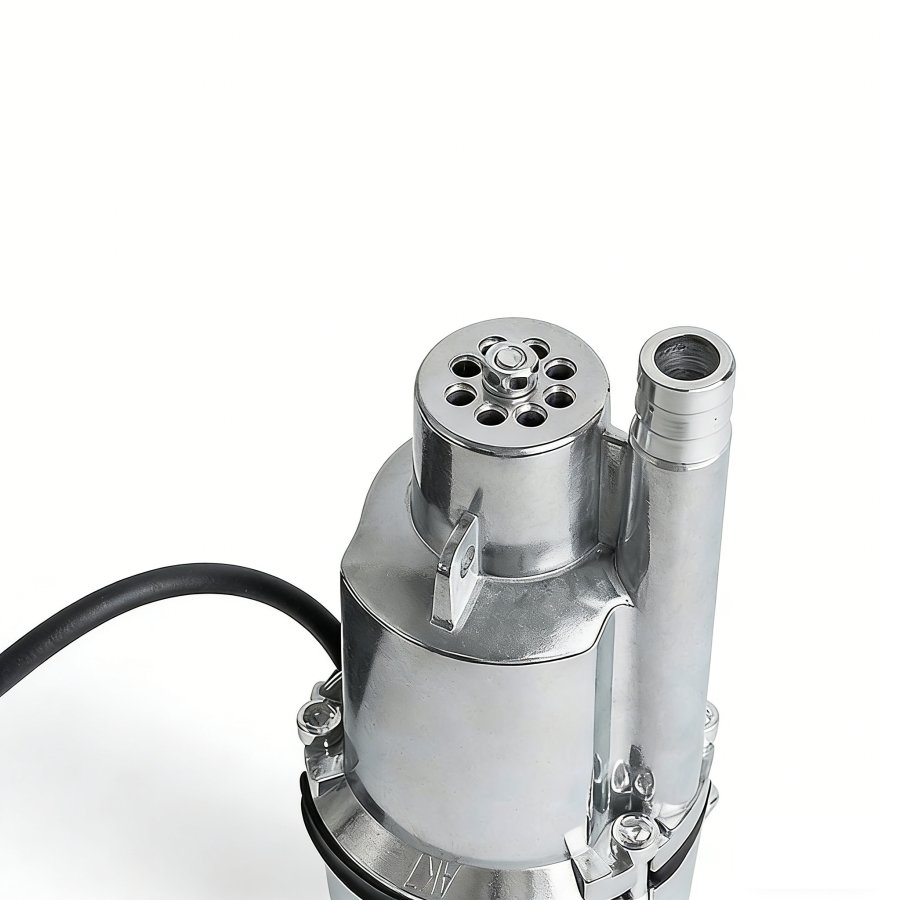

Vibration Submersible Pump

Working PrincipleIt uses an electromagnetic coil to generate high-frequency vibration, driving a piston-like diaphragm to create pressure changes, which in turn push water upward through the outlet pipe. Unlike traditional centrifugal pumps, it has no rotating impellers, reducing mechanical wear and improving durability.

Structure & Materials

Casing: Made of lightweight, corrosion-resistant aluminum alloy, with a polished finish for enhanced durability and heat dissipation.

Sealing: The motor and internal components are fully hermetically sealed with epoxy resin and rubber gaskets, ensuring waterproof performance  and safe underwater operation.

Mounting: Equipped with a top mounting bracket for easy installation in wells or fixed positions, and a long power cable  for flexible power access.

Applications

Domestic Use: Supplying water to rural households, cabins, or remote areas from shallow wells.

Agriculture & Gardening: Irrigating small farms, vegetable gardens, lawns, and flower beds.

Drainage: Removing accumulated water from basements, ponds, or construction pits.

Fountain & Landscape: Powering small decorative water fountains.

Advantages

High Lift: Capable of delivering water to heights up to 70 meters, suitable for deep wells.

Energy Efficient: Low power consumption compared to larger pumps for similar tasks.

Compact & Portable: Small size and light weight allow easy transport and installation.

Low Maintenance: No complex moving parts, reducing the need for frequent repairs.

Reliable: Resistant to voltage fluctuations and designed for long service life (up to 10 years under proper use).

6pcs in a carton

Carton size  :32×31×29.5cm

G.W./N.W.19.35/18.35KGS

Qty for 20' container:956pcs

Qty for40' container:1981pcs

Qty for 40'HQ container:2323pcs
