. Core Function & Purpose

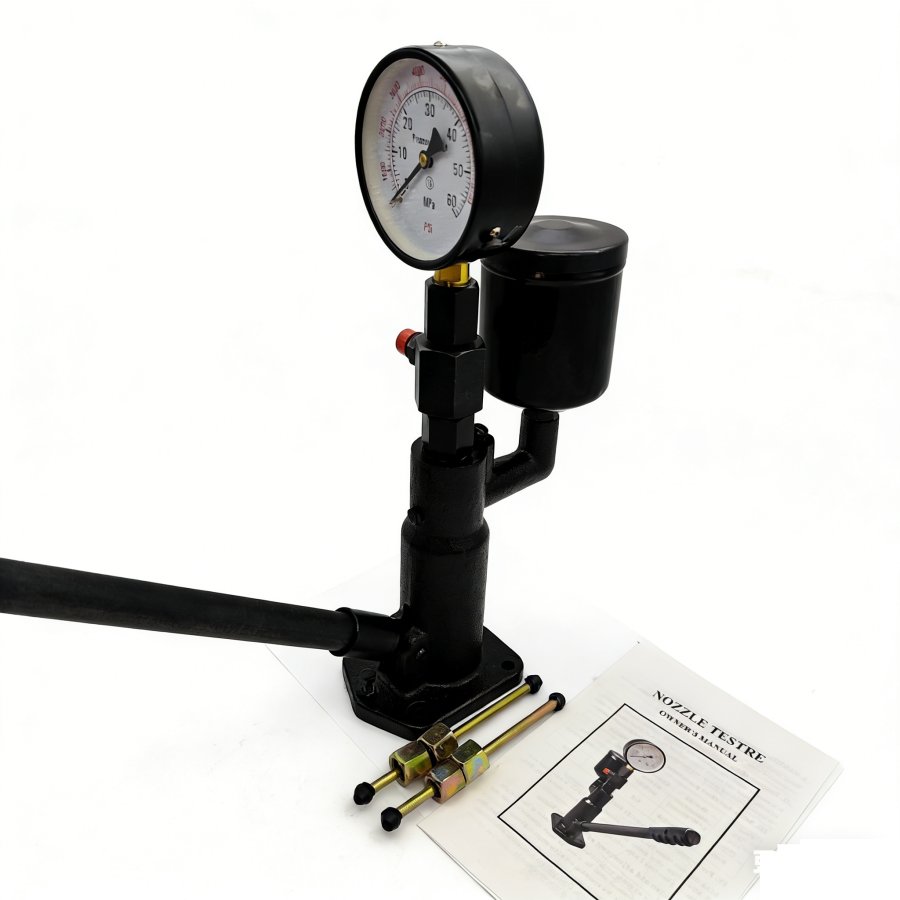

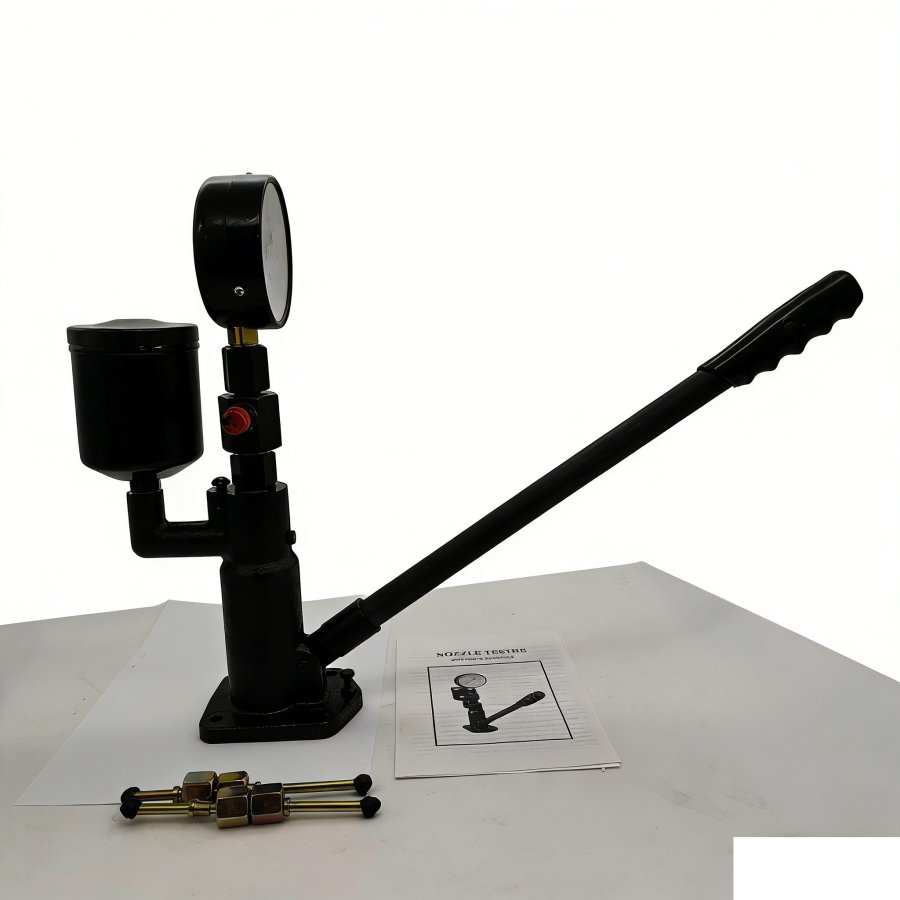

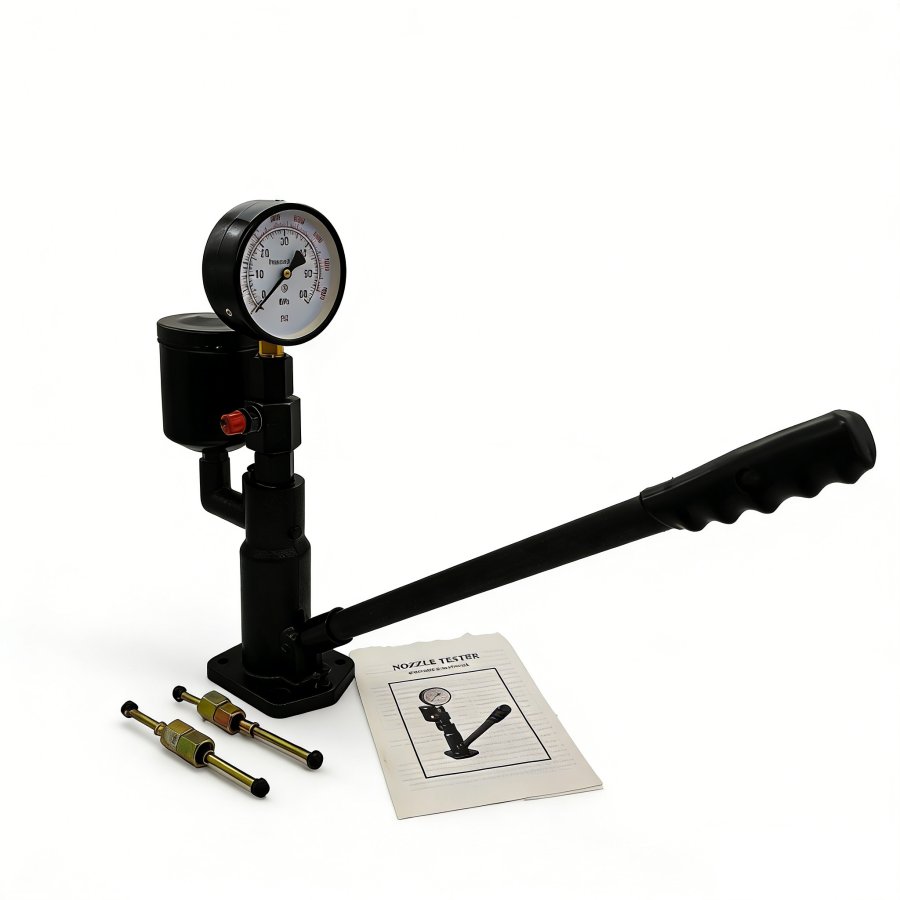

This manual injector tester is used to perform three critical tests on diesel fuel injectors:
Pop Pressure Test: Measure the exact opening pressure of the injector nozzle to ensure it meets the manufacturer's specifications.
Leakage Test: Check for fuel leakage at the nozzle seat, which can cause low pressure, poor atomization, and engine misfires.
Spray Pattern Test: Visually inspect the atomization quality of the fuel spray to ensure it is uniform, cone-shaped, and free of dribbling or uneven spray.
2. Key Specifications & Features
Pressure Range: 0-60 MPa, with a high-accuracy analog gauge for clear, easy-to-read pressure readings.
Manual Operation: Lever-style hand pump with a long, ergonomic handle for effortless pressure generation, requiring no external power source for field or workshop use.
Sturdy Construction: Heavy-duty cast iron base for stable, vibration-free operation; high-strength steel pump body and components for long-term durability and resistance to high pressure.
Included Accessories: 2 brass fuel adapter tubes to connect the tester to different injector models, ensuring broad compatibility.
Additional Design: Built-in oil collection cup to catch excess fuel during testing, keeping the work area clean; pressure relief valve for safe, controlled pressure release after testing.
3. Material & Durability
Main Body: Made of high-quality forged steel, heat-treated for maximum strength and wear resistance, capable of withstanding repeated high-pressure cycles.
Gauge: Precision-calibrated pressure gauge with a shock-resistant design, ensuring accurate and consistent readings over time.
Handle: Non-slip, ergonomic rubber grip for comfortable operation, reducing hand fatigue during extended use.
Adapters: Solid brass construction for corrosion resistance and a secure, leak-free connection to injectors.
4. Application Scenarios
Automotive Repair: Diagnose and service diesel injectors in cars, pickup trucks, and vans.
Heavy-Duty & Industrial: Test injectors in construction equipment, agricultural tractors, generators, and marine diesel engines.
Injector Rebuild & Calibration: Verify injector performance after cleaning, repair, or replacement, ensuring proper fuel delivery and engine efficiency.
Pre-Purchase Inspection: Check the condition of used injectors before installation to avoid costly engine issues.
5. Advantages
Portable & Compact: Lightweight and easy to transport, perfect for mobile mechanics and on-site repairs.
Cost-Effective: A budget-friendly alternative to large, expensive injector test benches, delivering professional-grade results.
Easy to Use: Simple, intuitive operation that requires minimal training, making it accessible for both professional technicians and hobbyists.
Versatile: Compatible with a wide range of diesel injector types, including mechanical and common rail injectors .
6pcs in a carton
Carton size :45*25*21cm
G.W./N.W.5.2/4.2KGS
Qty for 20' container:1185pcs
Qty for40' container:2455pcs
Qty for 40'HQ container:2878pcs
