Heavy-Duty V-Roller Stand

Model Number:

ST612661

Introduction:

This heavy-duty V-roller pipe support stand is an indispensable tool for plumbers, pipefitters, metalworkers, and fabricators. Designed to provide stable, low-friction support for pipes, tubing, and long workpieces during cutting, threading, welding, or assembly tasks, it features a robust green cast iron base, an adjustable-height column, and a V-shaped roller head that allows pipes to rotate smoothly without slipping. The crank-operated height adjustment lets you set the perfect working height for different projects, while the wide, three-point base ensures rock-solid stability even under heavy loads. Whether you’re working in a workshop or on a job site, this stand keeps your materials secure and accessible, helping you work faster, safer, and more efficiently.

Material:steel

Stand Height:24"-38"

Maximum supported width: 9 "

Maximum Weight Capacity: 1500 lbs.

Approximate shipping weight: 47 lbs.

Steel ball-bearing rollers：2“

Inquire Now

Durable Construction: Built with a heavy-duty cast iron base and steel column, this stand is designed to withstand heavy loads and resist wear, corrosion, and impact in demanding work environments. The powder-coated green finish provides additional protection against rust and scratches.

Adjustable Height: Features a crank-operated height adjustment mechanism, allowing you to easily raise or lower the stand to match different work heights, pipe sizes, and tools (such as pipe cutters or threading machines).

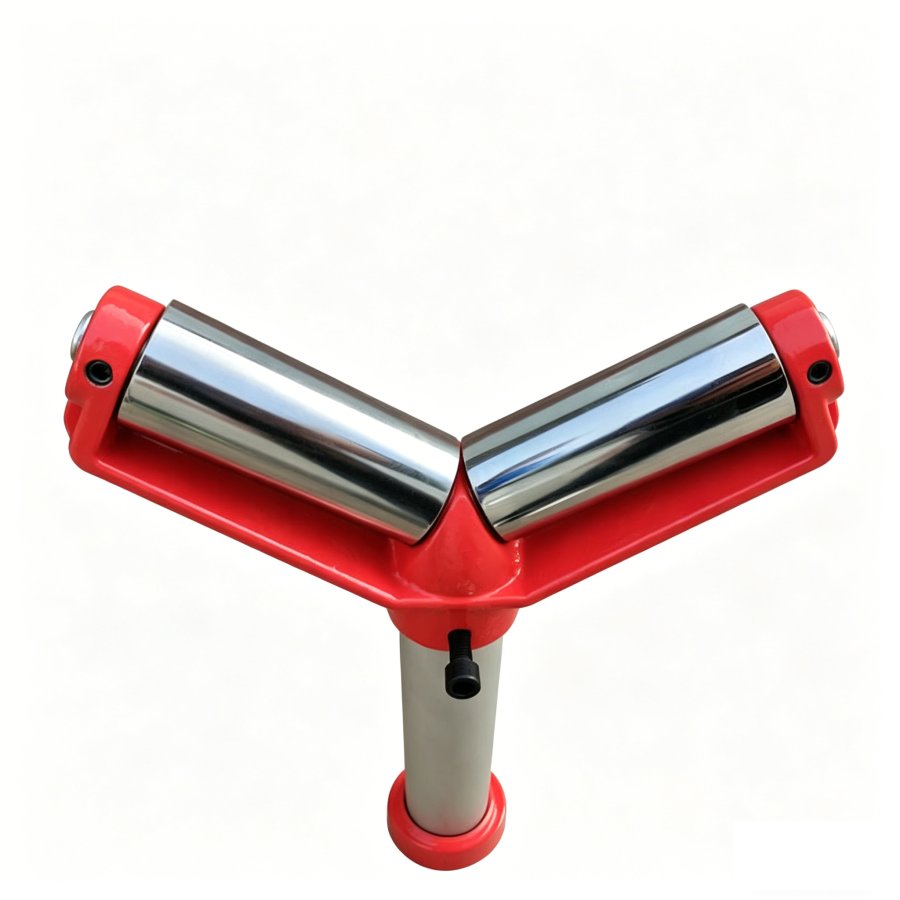

V-Roller Head Design: The top is equipped with two smooth steel rollers arranged in a V-shape, which securely cradles pipes while allowing them to rotate freely. This reduces friction during cutting or threading, preventing damage to the pipe surface and making operations smoother.

Stable 3-Point Base: The wide, three-legged cast iron base provides excellent stability, preventing tipping or wobbling even when supporting large, heavy pipes. The low center of gravity further enhances safety during use.

Versatile Application: Ideal for supporting pipes, tubing, and long workpieces of various diameters during plumbing, welding, metalworking, and assembly tasks. Suitable for both workshop and on-site use.

1sets in a carton

Carton size :57*57*14cm

G.W./N.W.23/21.5KGS

Qty for 20' container:615pcs
