we are professional manufacture in the field of automotivemaintenance tools and workshop equipment, we havemore than 20 years experiences on this line.
ST612696
ST612697
ST612698
ST612699
ST612700
ST612701
ST612702

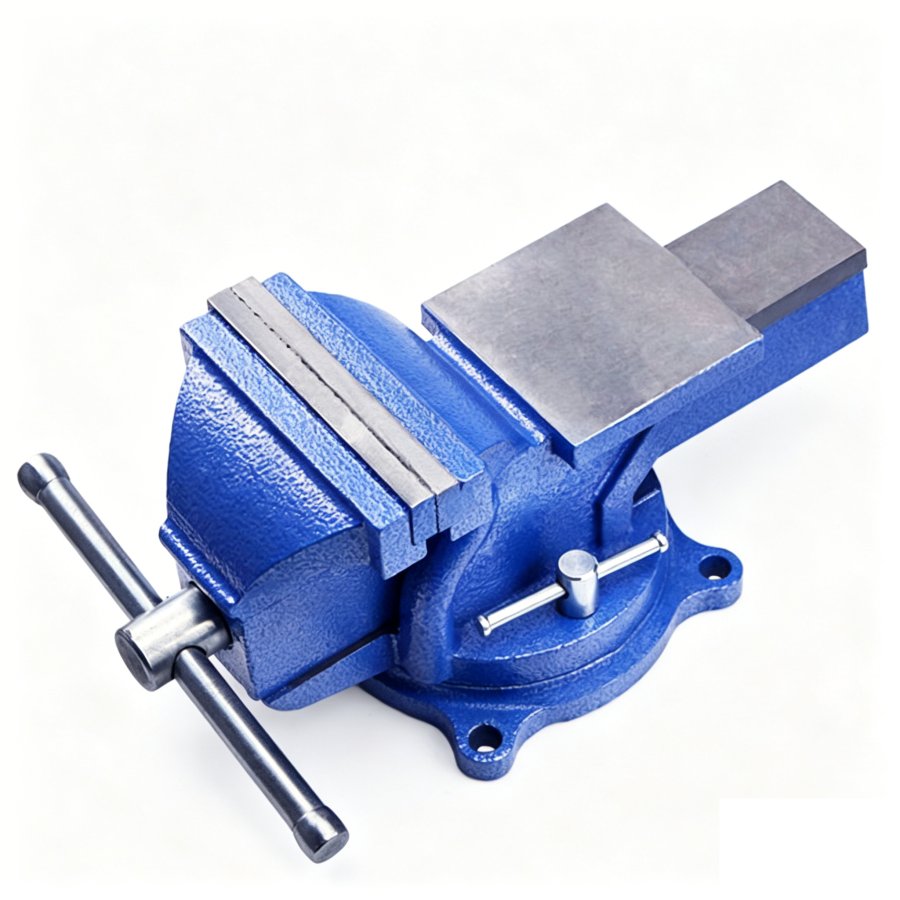

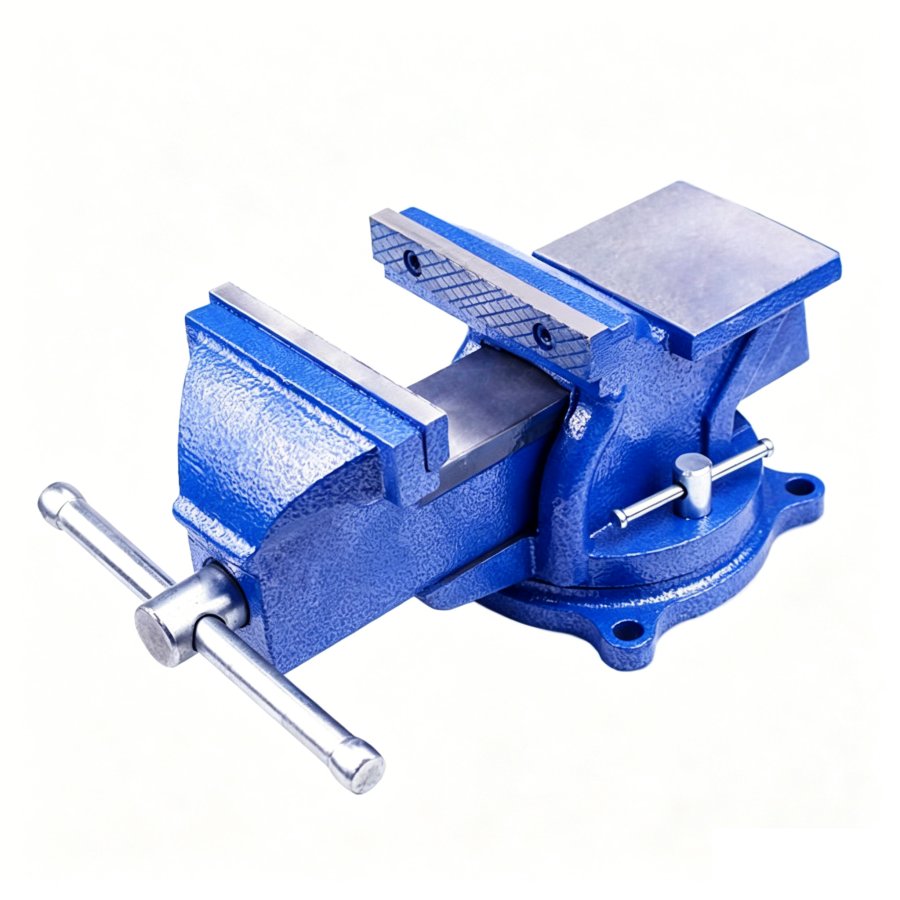

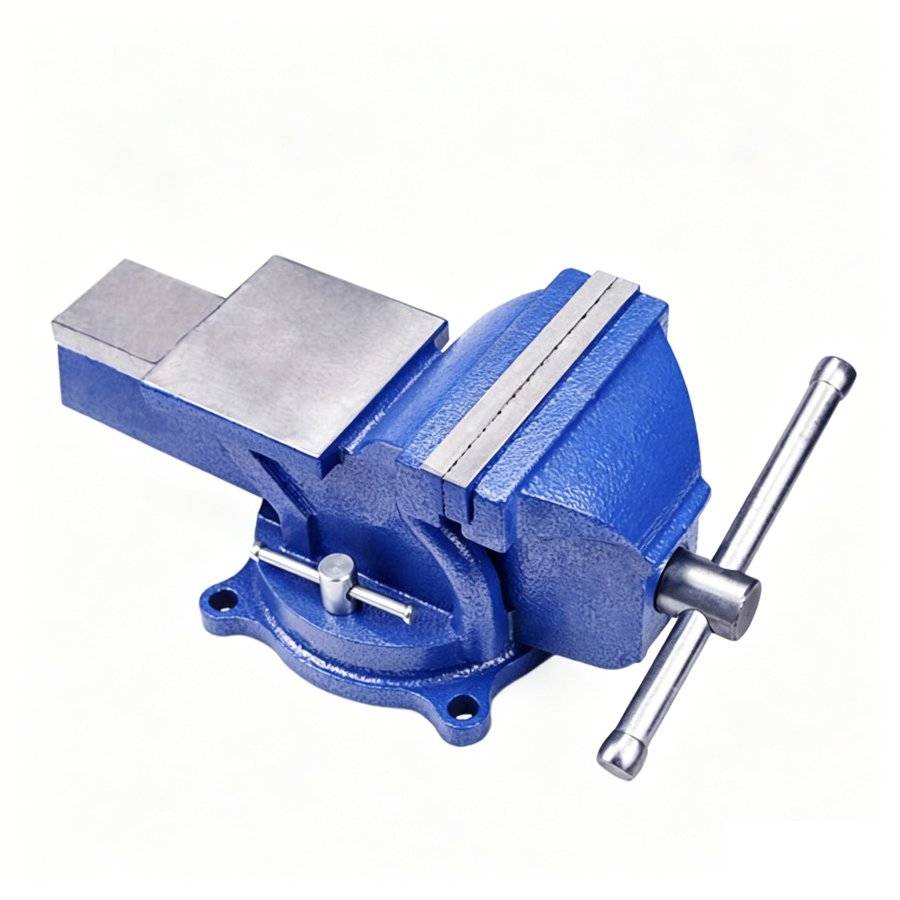

This is a heavy-duty bench vise, a core workshop tool designed to securely hold workpieces during sawing, drilling, filing, assembly, and other machining or repair tasks. Made of high-strength cast iron, it features a sturdy main body, replaceable steel jaws, a 360° swivel base, and an anvil work surface. Its robust structure ensures a firm grip and long-lasting performance, making it ideal for metalworking, woodworking, and mechanical maintenance projects in both professional workshops and home garages.
Size :3" 4" 5" 6" 8" 10" 12"
N.W.(kg):4.5 5 7.5 11.5 17.5 26 44
Open size(mm):98 100 115 136 155 195 220
Throat Depth(mm):52 52 57 72 78 89 111
Clamping Force(kN):7.5 7.5 10 12 15 20 25
This bench vise is a heavy-duty clamping tool built for industrial-grade durability and versatility. Constructed from high-grade cast iron, it offers excellent shock resistance and structural rigidity to withstand heavy use. The vise is equipped with hardened steel jaws for a strong, non-slip grip, a smooth spindle mechanism for easy adjustment, and a 360° swivel base that allows full rotation for optimal working angles. The built-in anvil on the back provides a flat surface for light hammering tasks, making it a multi-functional tool for any workshop.
High-Strength Cast Iron BodyThe main body is made of ductile cast iron, which is resistant to impact and deformation, ensuring stable clamping force even under heavy loads. The blue-painted finish protects against rust and corrosion, extending the tool’s service life.
Hardened Steel JawsThe jaws are made of high-carbon steel with serrated teeth, providing a secure, non-slip grip on metal, wood, and other materials. They are replaceable, allowing for easy maintenance when worn.
360° Swivel BaseThe base can rotate 360 degrees and lock in any position, letting you adjust the vise to the most convenient angle for your work. The mounting holes on the base allow for secure attachment to workbenches.
Built-In AnvilThe flat surface on the back of the vise acts as a small anvil, perfect for light shaping, bending, and hammering tasks without needing a separate tool.
3":56x27x17㎝ G.W./ N.W (kgs):19/18
4":56x27x17㎝ G.W./ N.W (kgs):21/20
5":31x29x19㎝ G.W./ N.W (kgs):16/15
6":37x36x21㎝ G.W./ N.W (kgs):24/23
8":43x22x22㎝ G.W./ N.W (kgs):18.5/17.5
10":50x26x25㎝ G.W./ N.W (kgs):27/26
12":60x31x28㎝ G.W./ N.W (kgs):45/44
