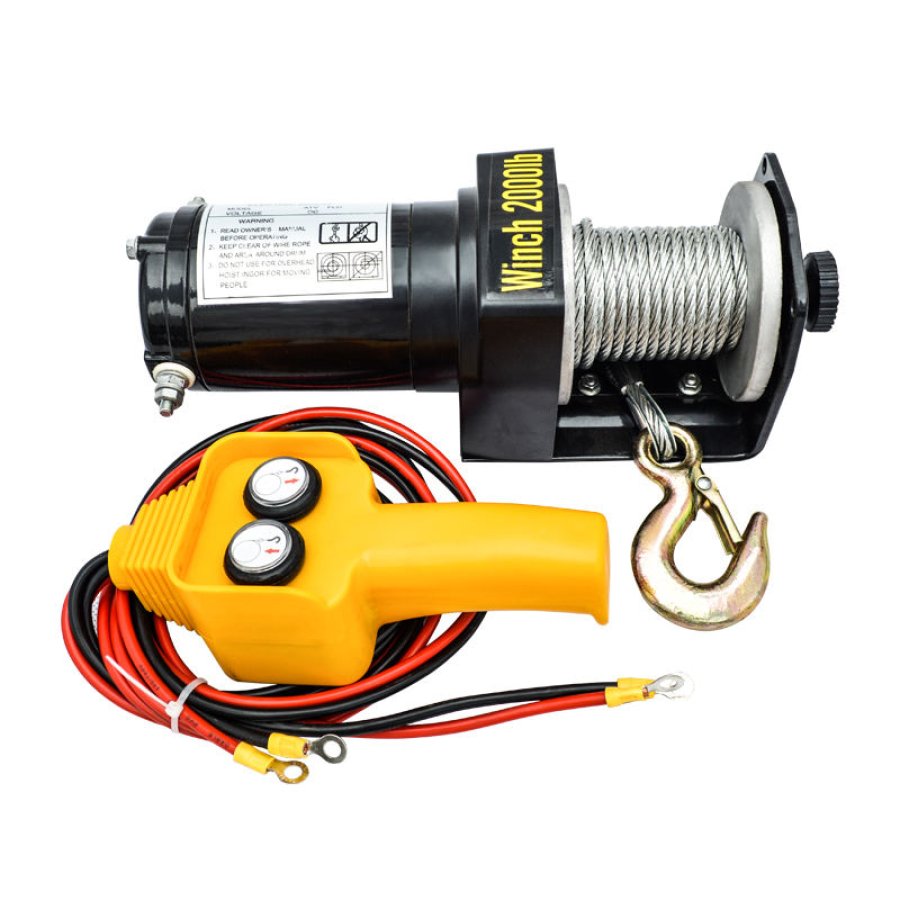

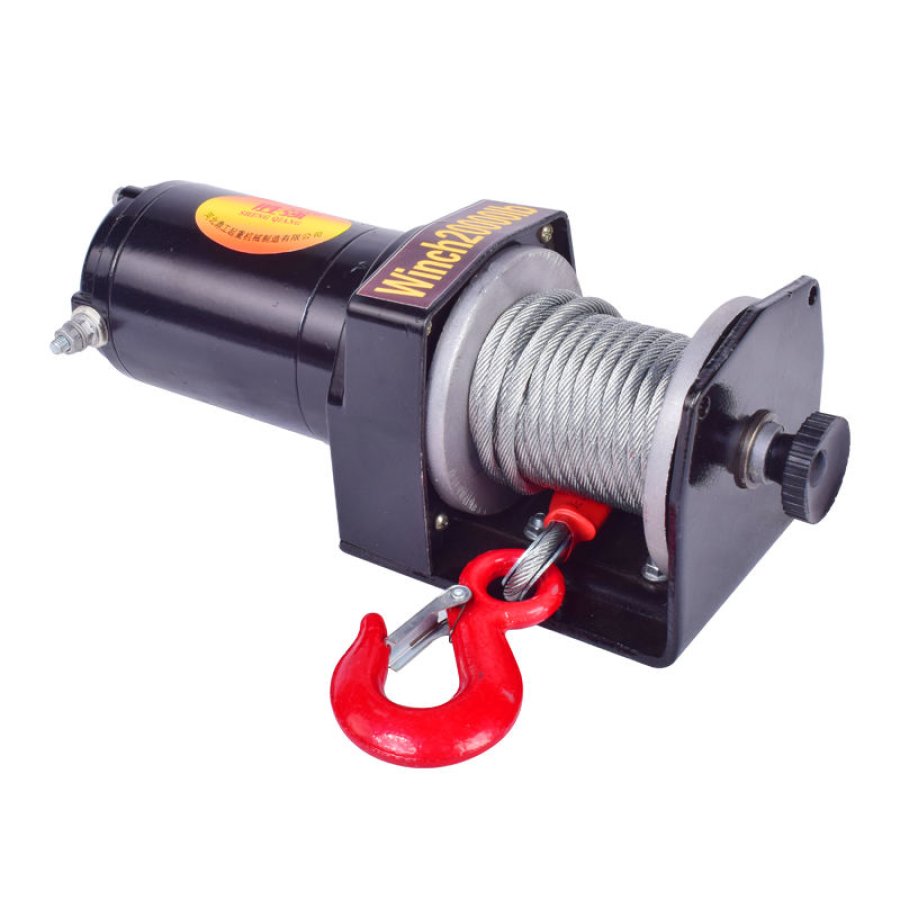

12V DC 2000lbs Electric Winch with Remote Control

Pull, Speed, Amperes, Volts(First Layer)

Line Pull (lbs./kg)    Line Speed FPM(m/min)    Motor (Amps)

0    10.5ft (3.2m)    8

500(227)    9.2ft (2.8m)    30

1,000(454)    7.2ft (2.2m)    60

1,500(680)    5.2ft (1.6m)    90

2,000(907)    2.9ft (0.9m)    120

Line Pull And Rope Capacity In Layer

Layer    Rated Line Pull (Ibs./kgs)    Total Rope On Drum (ft/m)

1    2000(907)    6.6(2.0)

2    1630(740)    14.0(4.3)

3    1380(620)    23.5(7.2)

4    1190(540)    35.0(10.6)

5    1050(470)    47.0(14.4)

6    940(420)    50.0(15.0)

2pcs in a carton

Packing size:34*29*15.8CM

N.W/G.W.7/8KG

Qty for 20'container:3594pcs

Qty for 40'container:7446pcs

Qty for 40'HQcontainer:8728pcs
