we are professional manufacture in the field of automotivemaintenance tools and workshop equipment, we havemore than 20 years experiences on this line.
ST611959
Pressure relay :130KN
itinerary :42mm/90mm

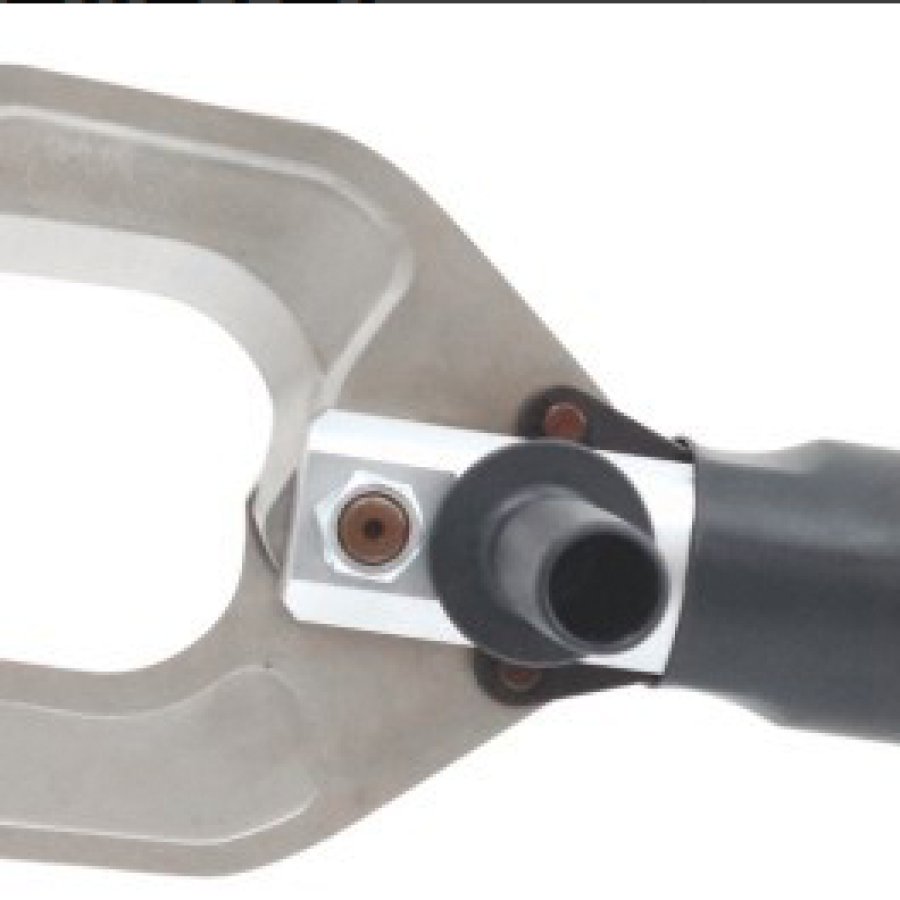

Cutting range: Ø85mm copper aluminum cable and armored cable
Crimp range: 16-400 square millimeter copper aluminum terminals
Crimp times: 70times (Cu150 square millimeters) saturation voltage
Crimping cycle: 8-12s (depending on the size of the cable)
Crimping mold:16,25,35,50,70,95,120,150,185,240,300,400 square millimeters

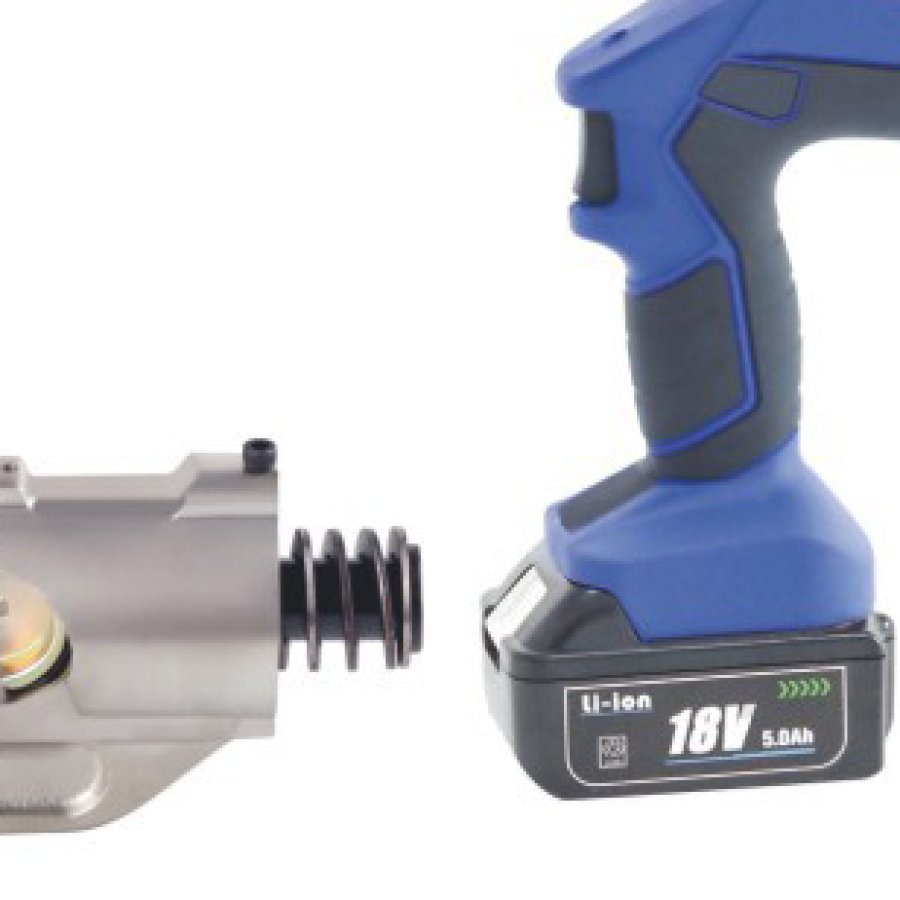

Voltage/Capacity:18V/5.0AH
Charging time:About 90 minutes
OLED display
One-touch control
The clamp head can rotate 350 degrees
Two stage hydraulic system
Automatically retract after crimping/cutting is completed
Battery level display
Accessories: 2 batteries, 1 charger, 1 set of oil cylinder sealing rings, 1 set of safety valve sealing rings
OLEDdisplay
Battery level display
Pressure relay :130KN
itinerary :42mm/90mm
Cutting range: Ø85mm copper aluminum cable and armored cable
Crimp range: 16-400 square millimeter copper aluminum terminals
Crimp times: 70times (Cu150 square millimeters) saturation voltage
Crimping cycle: 8-12s (depending on the size of the cable)
Crimping mold:16,25,35,50,70,95,120,150,185,240,300,400 square millimeters
Voltage/Capacity:18V/5.0AH
Charging time:About 90 minutes
OLED display
One-touch control
The clamp head can rotate 350 degrees
Two stage hydraulic system
Automatically retract after crimping/cutting is completed
Battery level display
Accessories: 2 batteries, 1 charger, 1 set of oil cylinder sealing rings, 1 set of safety valve sealing rings
OLEDdisplay
Battery level display
1pc in a carton
Carton size : 64*16*49CM
Net weight (with battery):10.7kg
