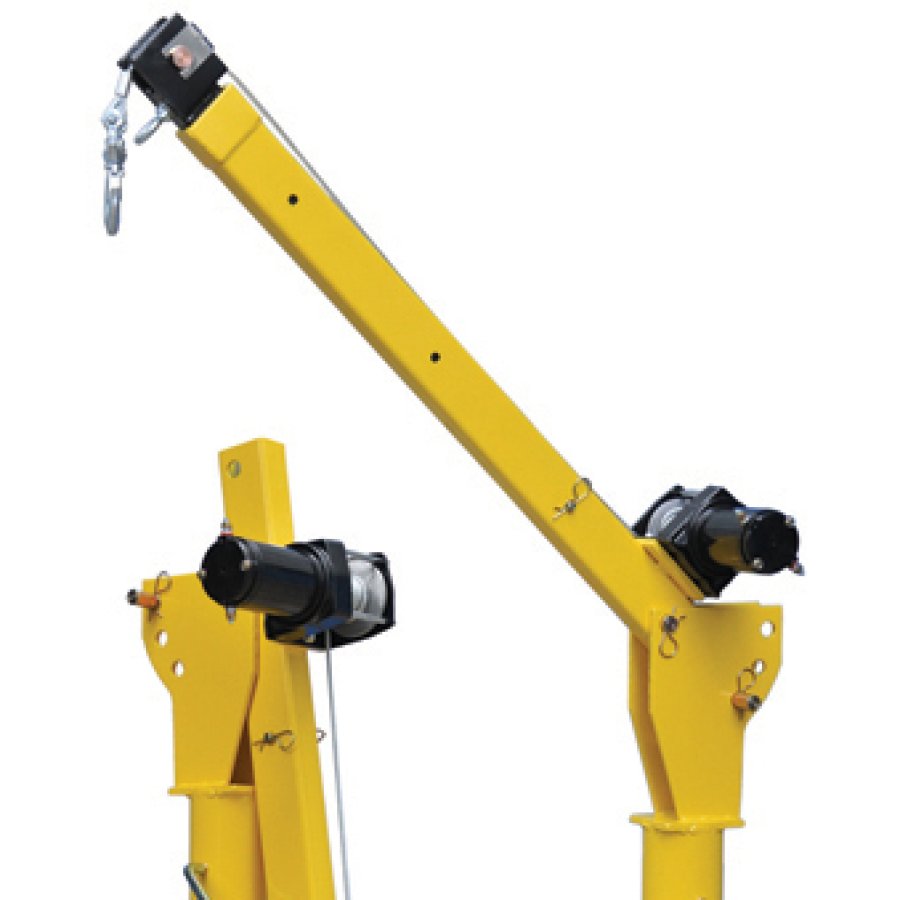

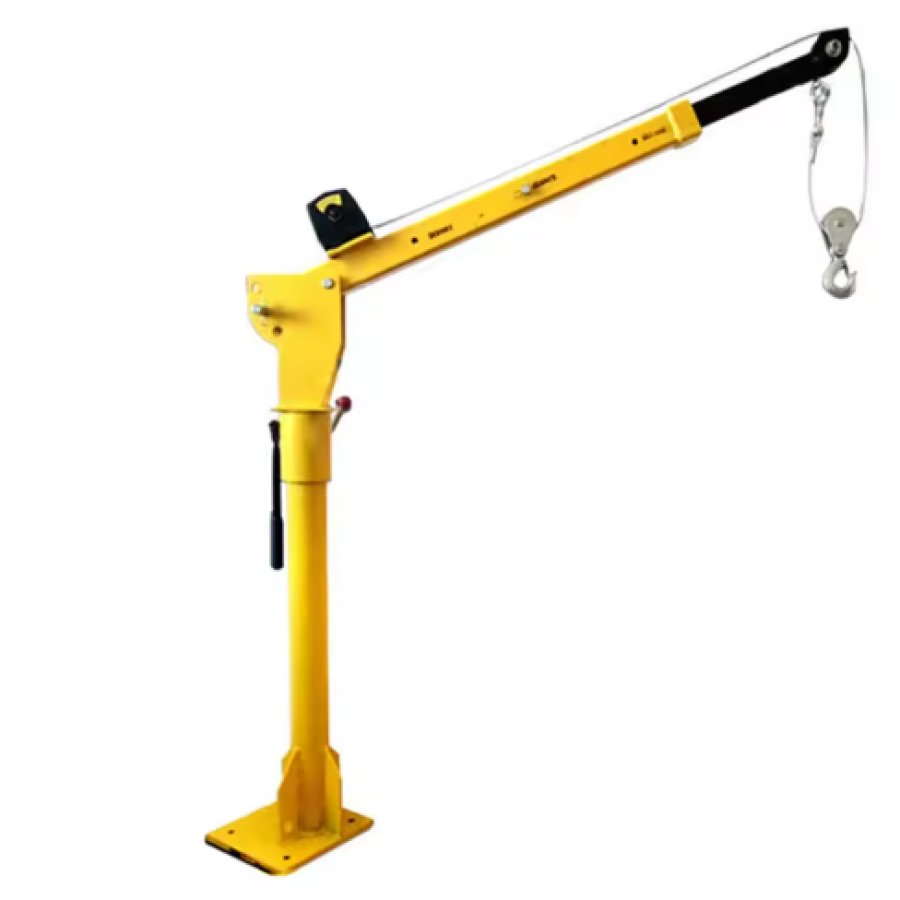

Electric Winch Hoist - Heavy-Duty Lifting Equipment for Construction

SPECIFICATIONS:

Compact design, folds away when not in use

Easily installed,on site or by a vehicle body builder

Single line Lifting Capacity(maximum) 500kg

Lifting Height Max.Std.(base to hook) :1940mm

Reach Max.(from center of rotation): 1490mm

Rotation (continuous) with Brake :360° Manual

Lifting Cable:Φ4.8mm x 4.5m –1pc(for single-line lifting)

Line speed with No Load:3.6m/min single line

Power Requirements:12V DC 125 amps

Switch control lead:3m

MOTOR cable:1.3m    Battery cable:1.8m

Mounting Base: 250x250x16mm

Mounting Bolt Hole Pattern:170x170mm

Finish:Powder Coated

Packing

1pc in a carton

Carton size :140x39x35cm

G.W./N.W.:60/57kg
