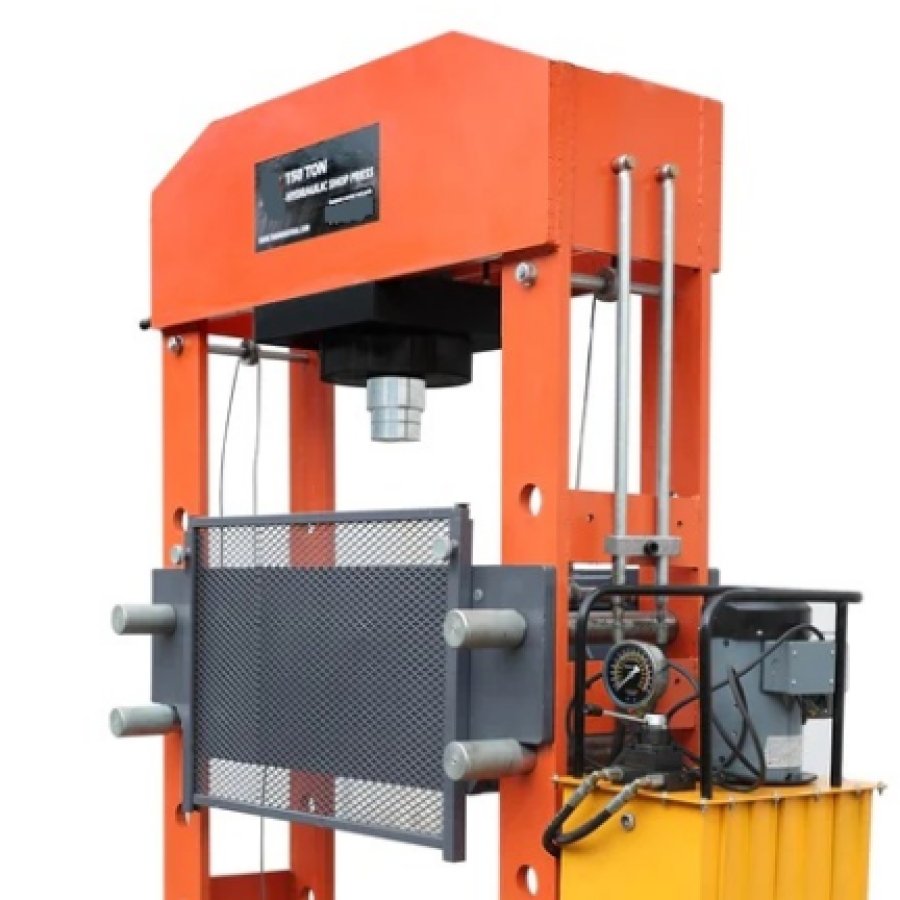

Industrial 150T Electric/Hydraulic Shop Press

Model Number:

ST605748

Introduction:

· Heavy duty fully welded 1” x 6” steel H frame to add rigidity and durability

· Sliding ram pressing head offers multiple work positions (moves left and right)

· No-slip safety clutch and steel cable winch to move carriage bed

· Electric powered hydraulic pump for heavy pressing

· Ram fully extended travel time: 85 seconds

· Ram fully retracted travel time: 60 seconds

More Product Details

· Overall dimension: 78” x 40” x 83” (L x W x H)

· Frame internal width: 13-3/4”

· Frame internal length: 39-3/8”

· Ram stroke: 13-3/4”

· Ram diameter: 4-5/8”

· Ram left-right movement: 13”

· Ram pressing head diameter: 3-7/8”

· Grid guard: 36” x 23”

· Carriage bed workable opening: 34” x 16” (L x W)

· Carriage bed pin diameter: 2-3/16”

· Discharge pressure: 105-115%

· Max pump pressure: 8500 PSI

· Pressure gauge accurate to +/- 2.5%

· Maximum workpiece height allowed: 37”

· Hydraulic fluid for motor pump not included (ISO AW32 required)

Electric Motor:

· CSA approved motor: 115V 60Hz 2HP

· No-load speed: 1750 RPM
