Rechargeable Hydraulic Pliers With Digital Display, Efficient And Precise Tool

Pressure relay ：120KN

itinerary ：42mm

crimping range ：16-400square millimeter copper aluminum terminal

Number of crimping times ：320times (Cu150square millimeter) saturation voltage

Crimp cycle ：10-16s (depending on cable size)

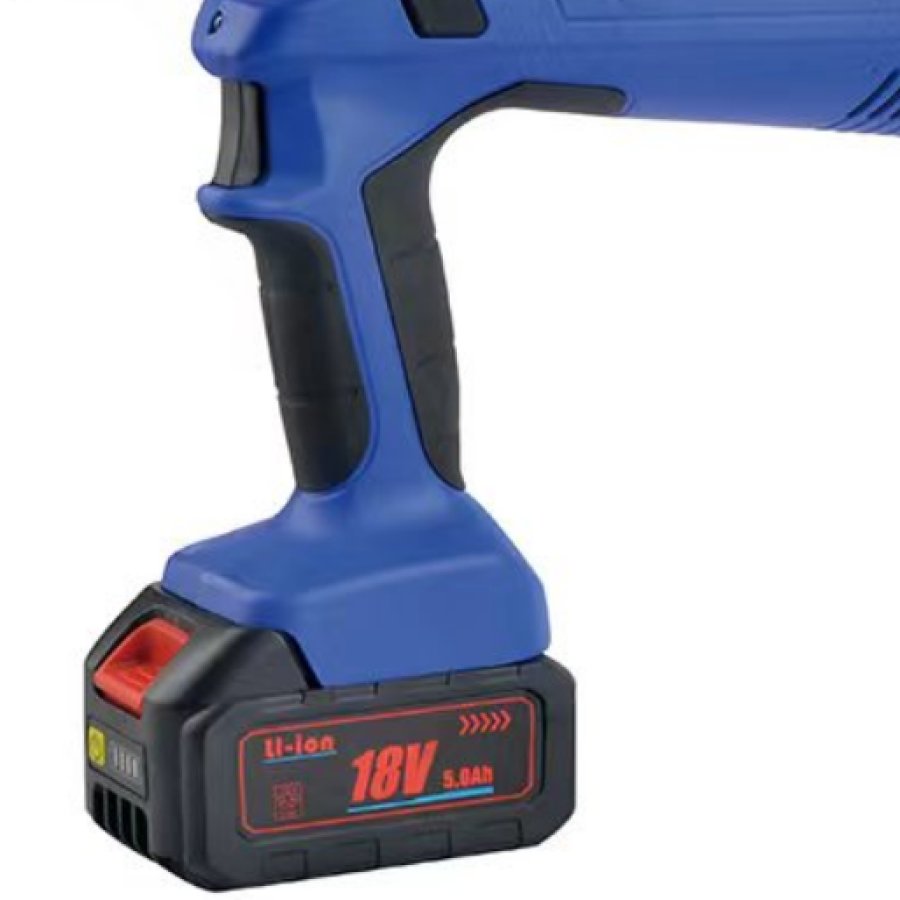

Voltage/Capacity：18V/5.0AH

Charging time：about 1 hour

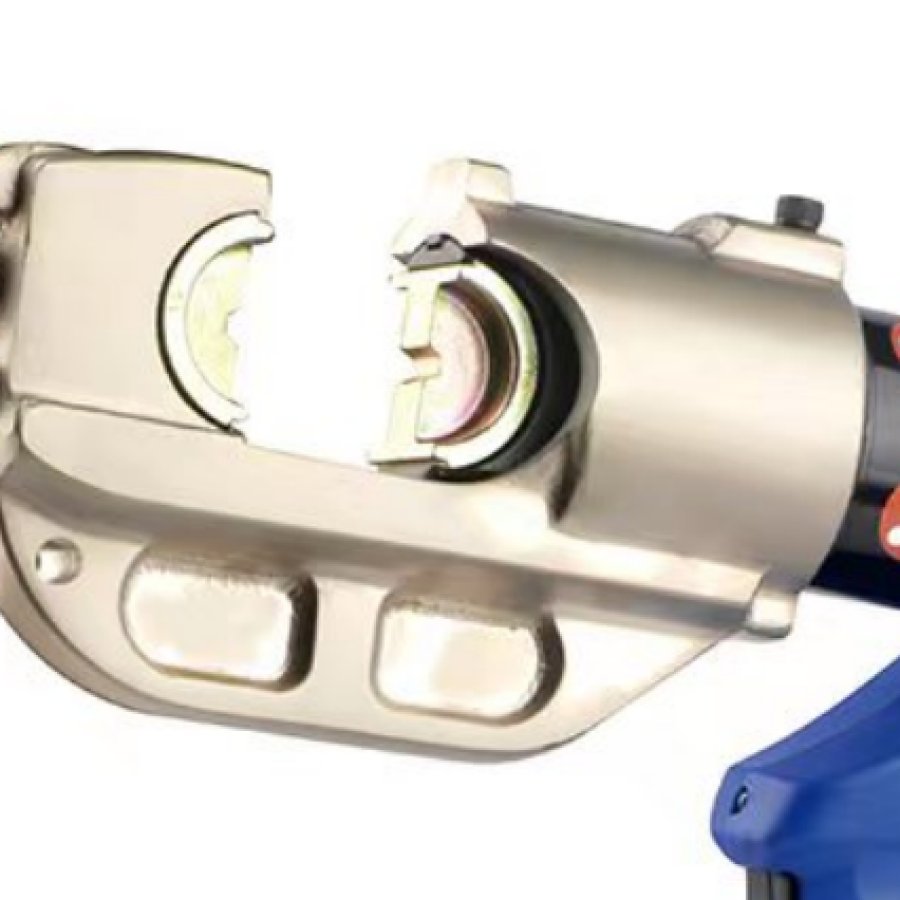

crimping die：16,25.35,50,70.95,120,150,185,240.300,400square millimeter

Micro control system, automatically detects pressure during

crimping, dual safety protection.

This tool is equipped with a dual piston pump,

 which is characterized by quickly processing connecting materials

and transferring them to slow crimping,

automatically placing the system in a high-pressure state.

 If a deviation from the set working pressure or low battery level is detected,

 a sound signal will be emitted and a red display will flash.

One click control, press the trigger button to start working,

release half of the trigger device to stop applying pressure,

press the oil return switch to return the piston to its original position.

The temperature sensor automatically stops the tool from working.

 When the working temperature exceeds 60 ℃ for a long time,

a fault signal sounds, which means that the tool must wait until

 the temperature drops to normal levels before continuing to work.

Accessories: 2 batteries, 1 charger, 1 set of oil cylinder sealing rings, 1 set of safety valve sealing rings

1 pc in a carton

Carton size :50*11*39.5 cm

Net weight (with battery)：7kg
