we are professional manufacture in the field of automotivemaintenance tools and workshop equipment, we havemore than 20 years experiences on this line.

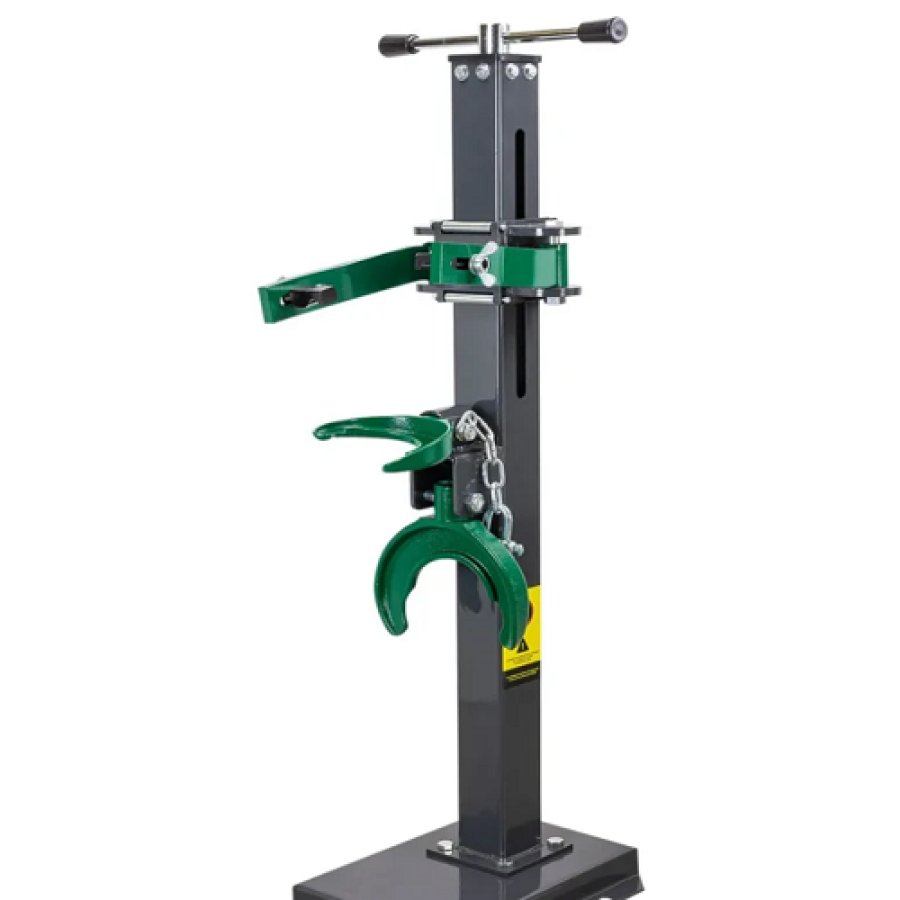

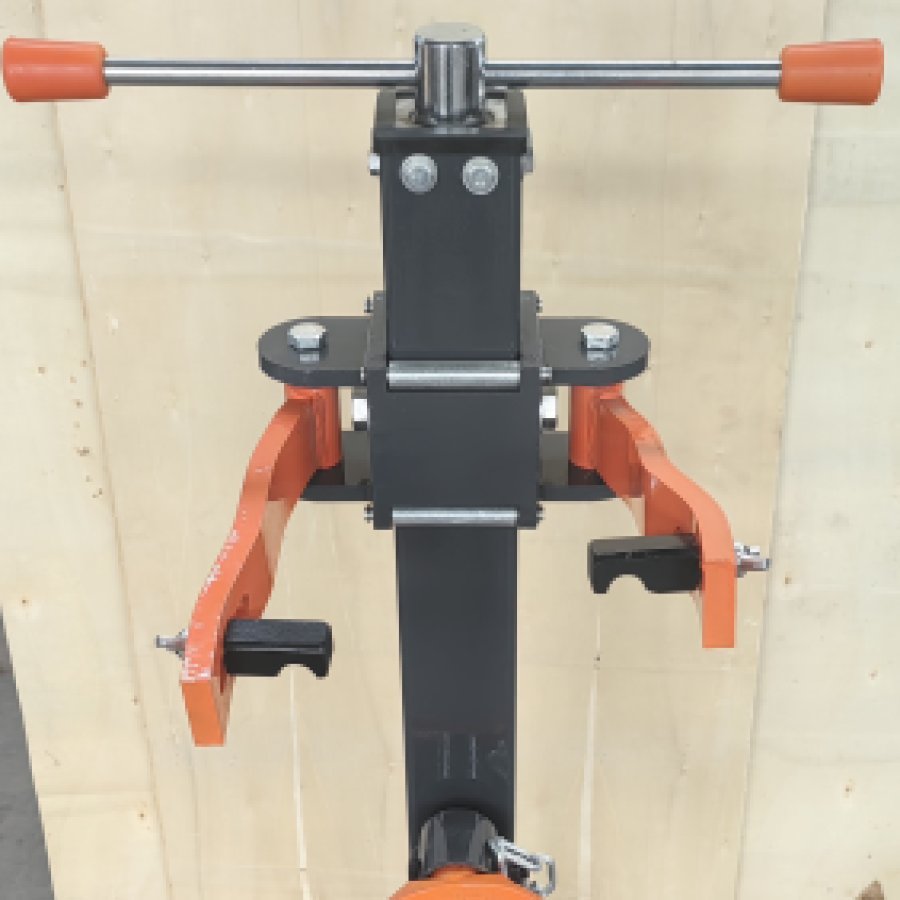

ST610987
Outer diameter of clamping spring: 90-220mm
Maximum pitch of clamping spring: 80mm
Clamping spring steel wire diameter:<=16mm
Clamp shock absorber tube diameter: 45-55mm
Maximum travel of sliding sleeve: 280mm
Maximum height of detachable spring: 500mm
Outer diameter of clamping spring: 90-220mm
Maximum pitch of clamping spring: 80mm
Clamping spring steel wire diameter:<=16mm
Clamp shock absorber tube diameter: 45-55mm
Maximum travel of sliding sleeve: 280mm
Maximum height of detachable spring: 500mm
Packing:
1PC/ carton box
Packing Size :105x30x18cm
G.W./N.W.:25/24KGS
